Frameset

• Frame

  SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection

• Fork

  SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset

• Headset

  Semi-Integrated, Tapered; 1-1/8″-1-1/2″

E-System

• Drive Unit

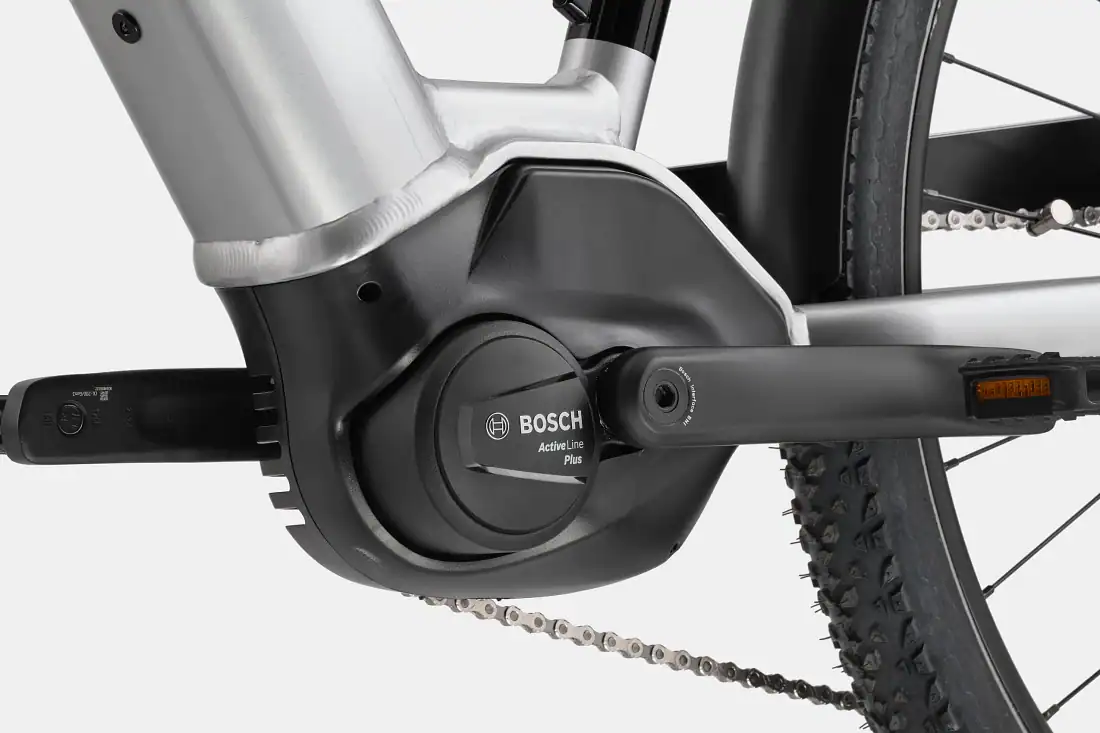

  Bosch Active Line Plus, Smart System, 25 km/h

• Battery

  Bosch PowerTube, 500Wh

• Charger

  Bosch 2A

• Display

  Bosch Purion 200

Drivetrain

• Rear Derailleur

  Shimano CUES 4020

• Shifters

  Shimano CUES 4000, 9-speed

• Chain

  KMC E11

• Crank

  FSA for Bosch

• Rear Cogs

  Shimano CUES 400, 11-36, 9-speed

Brakes

• Brakes

  Shimano MT200 hydraulic disc, 180/180mm RT30 rotors

• Brake Levers

  Shimano MT200 hydraulic disc

Wheels

• Rims

  Alloy, double wall, 32 hole, 25mm internal width, disc-specific

• Spokes

  Stainless Steel, 14g

• Tire Size

  2.2

• Wheel Size

  29

• Hubs

  (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano UR600, 135QR

• Tires

  Continental Race King, 27.5×2.20″ 55-584 (SM), 29×2.20″ 55-622 (MD-LG)

Components

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm

• Stem

  Cannondale 3, Alloy, 31.8mm clamp

• Grips

  Cannondale Ergo Fitness Dual Density, Lock-on

• Saddle

  Selle Royal Vivo Active

• Seatpost

  Cannondale 3, 6061 Alloy, 31.6

Extra

• Extra 1

  Integrated headtube reflector, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders
